A associate company of Painting and Coating systems groups managed by a team of professionals of around Twenty four years experience in field of surface coating. We value our customers and Endeavour to offer the best in finishing business like paint shops, Injection Molding, Packaging, Irrigation extrusion, flexi tube.
Mahindra And Mahindra Approved CED plant . Certification : ISO9001.

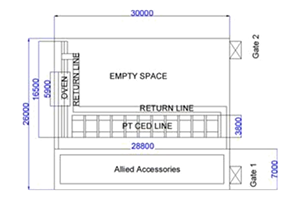

Paint System used : Asian PPG Black CED. Area wise- we currently posses a capacity to coat 4000Sq. mtrs/ day… Apparently 1 lakh Sq mtrs a month Company posses a covered storing area of 2000 Sq mtrs. and 1500 sq mtrs. Parking area for logistics movement

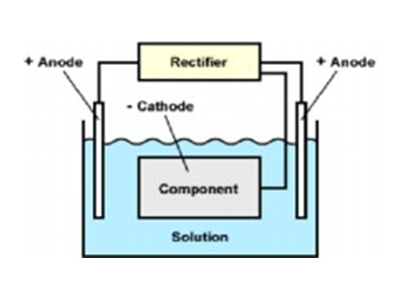

Cathodic Electro Deposition (CED) is a process of coating an object having a conductive surface connected to a circuit as the cathode, by positively charged paint particles suspended in aqueous medium, under direct current. A combination of dip and spray ensures the reach of paint at every corner of component having intrinsic shape as well.
| Sr.No | Description of test | Test Method | Performance Data |
|---|---|---|---|
| 1 | Gloss at 60 Deg. Head | ASTMD 523 | 60 – 75 % |
| 2 | Pencil Hardness | ASTM D3363 | 2H Minimum |
| 3 | Crosshatch Adhesion | ASTM D3359 | 4B – 5B (1 mm * 1mm). Passes 100 % |
| 4 | Direct Impact | ASTM D2794 | 100 in-lb Minimum |
| 5 | Reverse Impact | ASTM D2794 | 60 in-lb Minimum |
| 6 | Humidity | ASTM D1735 | 1000 Hours Minimum |
| 7 | Water Soak | ASTM D870 | 1000 Hours Minimum |
| 8 | Gravelometer | GM9508P | 6 Minimum |
| 9 | Throw power | GM9535P Ford Box |
12 – 15 inches Min 21 Cms. |
| 10 | Salt spray Test | ASTMB 117 – Neutral |
Passes Min 1200 hrs. Creep width Max 3.0 average. No blisters / corrosion spots |
| 11 | Scab corrosion resistance | GM9511P | Passes 20 cycles. Creep width Max. 2.0 |
| 12 | Chip resistance | SAE J400 | 4B (50-74 chips, 1-3mm diameter) |
| 13 | Cyclic corrosion test | FLTM BI 123-03 ASTM D 610 |
Passes 20 cycles |
