Cathodic Electrodeposition Coating CED, also known as ED Coating or KTL Coating German Kathodische Tauchlackierung, is an advanced surface finishing process widely used in the automotive and engineering industries. It ensures superior corrosion resistance, uniform coverage, and long-lasting protection for metal components, making it a preferred choice for OEMs and engineering applications across the globe. Ekvira

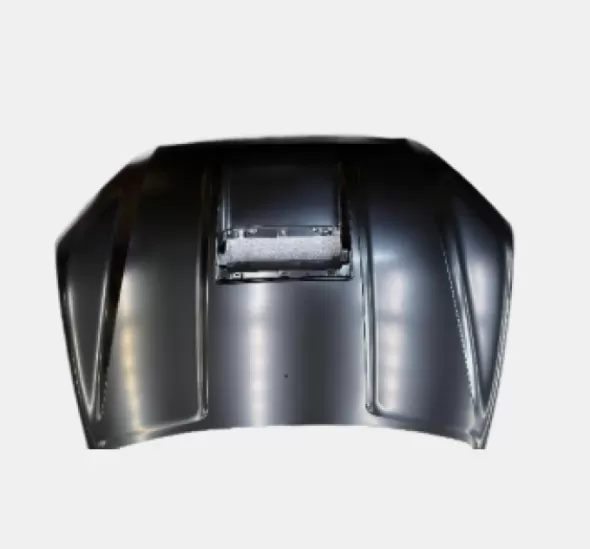

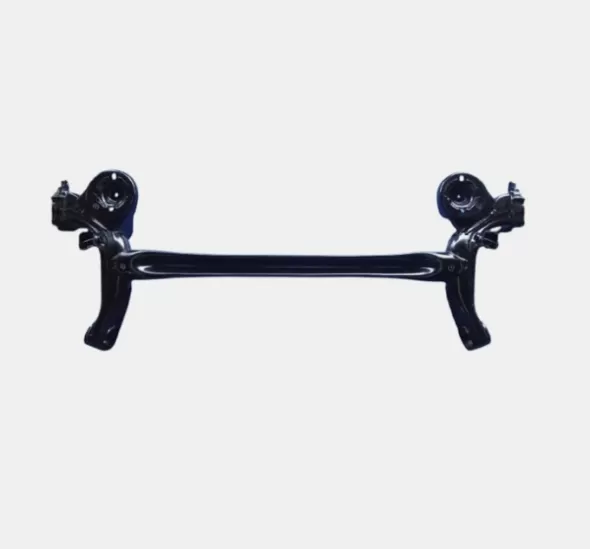

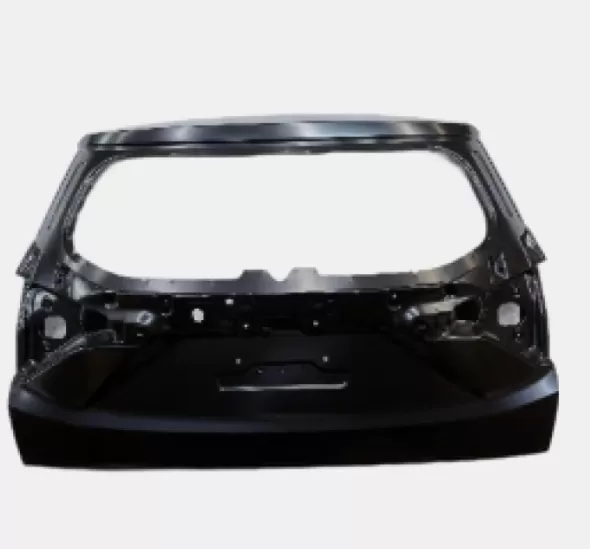

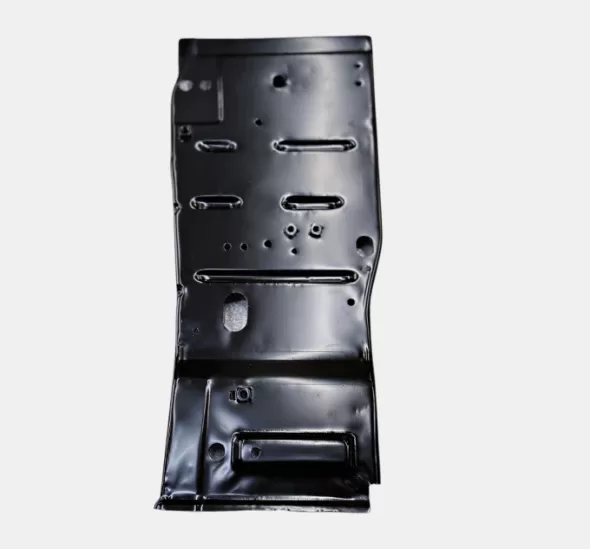

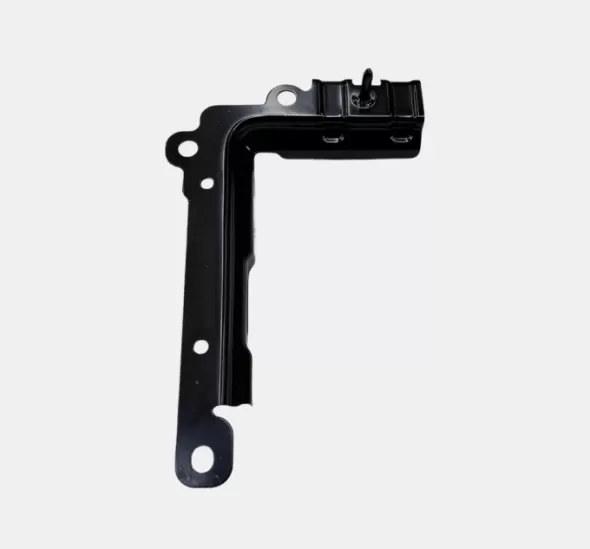

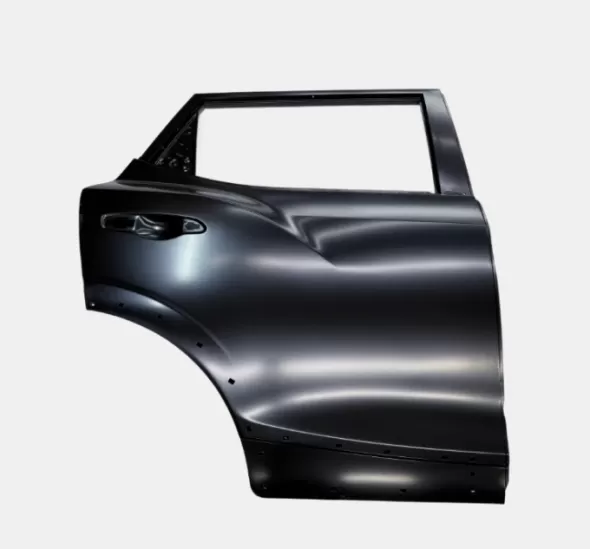

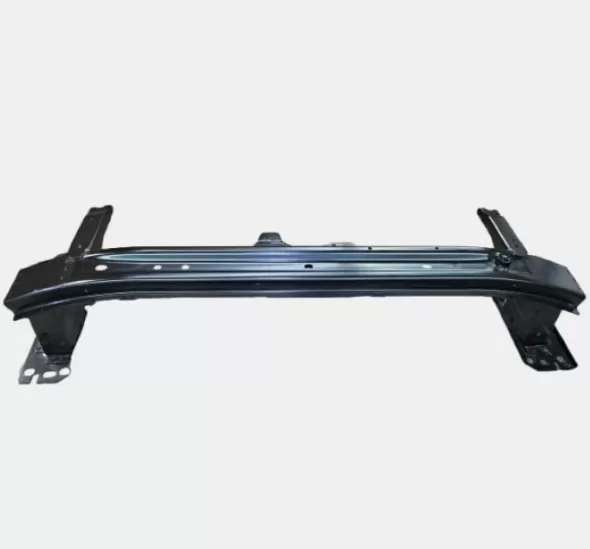

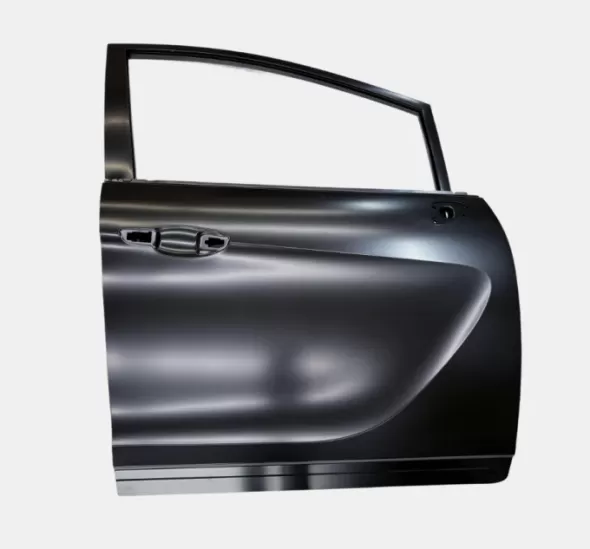

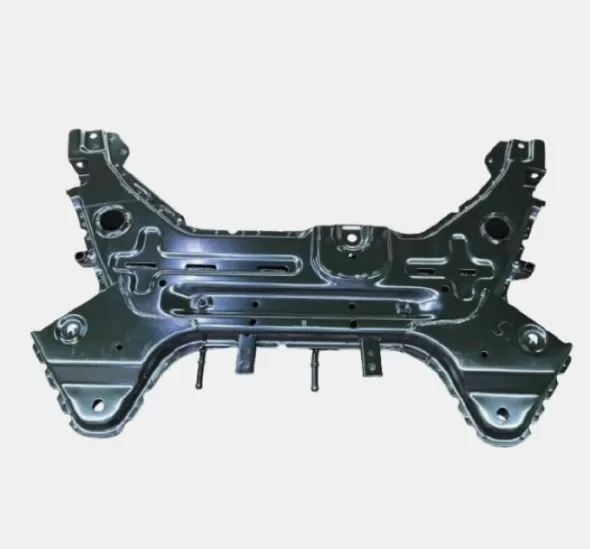

Industries is a trusted name in surface coating solutions, specializing in Cathodic Electro Deposition CED and allied coating technologies for automobile, industrial, and engineering components. With years of expertise, we deliver coatings that ensure durability, superior finish, and enhanced corrosion protection. Our capabilities cover sheet metal press parts doors, hoods, bumpers, tubular chassis, etc., fabricated assemblies, EV scooter chassis, and three-wheeler chassis, tailored to meet diverse customer requirements.
Our Commitment
SCADA-controlled facility for real-time monitoring.
Dual facilities ensuring business continuity and backup.
Complete in-house testing.
Fully automated, PLC-controlled process ensuring consistency.
Timely deliveries with a customer-first approach.

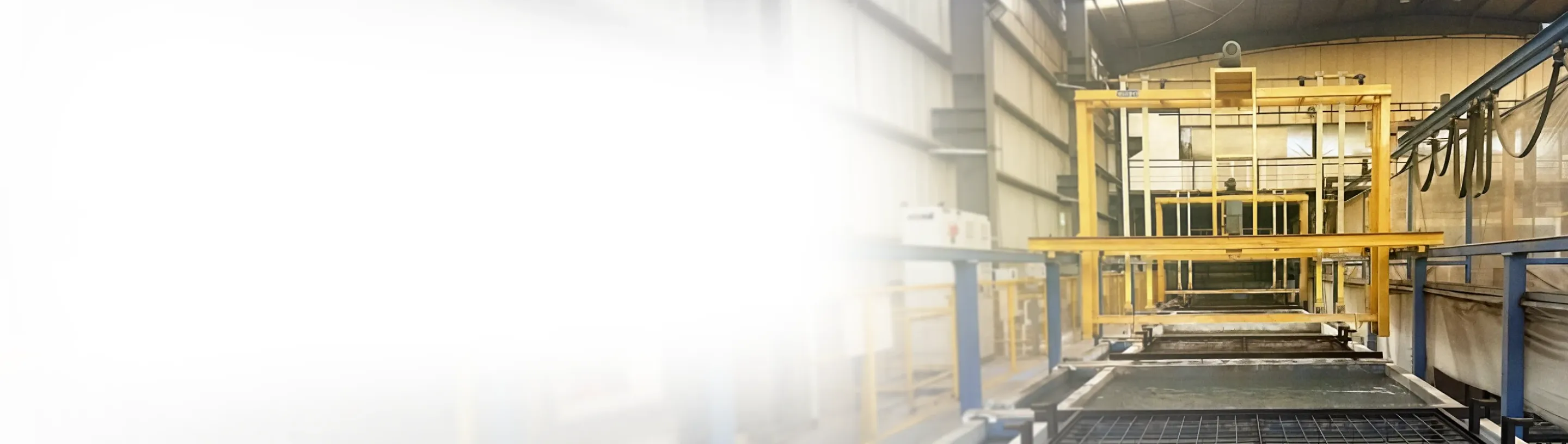

Paint System & Infrastructure
At Ekvira Industries, we use the Asian PPG Black CED paint system, recognized for its consistent quality and durability. With a coating capacity of 9,000 sq. mtrs per day approximately 2,40,000 sq. mtrs per month, we are fully equipped to meet high-volume demands.Our infrastructure includes
2,40,000 Sq. mt
CED Coating Capacity - sq. mtrs per month
40,000 Sq. Ft
logistics space for smooth movement of goods + covered storage area for material handling.
ETP & ZLD
To reinforce sustainability, our facilities are equipped with a modern Effluent Treatment Plant (ETP) and a Zero Liquid Discharge (ZLD) system, ensuring 100% wastewater recycling with no environmental discharge.
Product Benefits
Highest Corrosion Protection Value
Achieves industry-leading resistance, tested for 1000 hours in Salt Spray Test (ASTM B:117)
Excellent Throwing Power
Ensures coating penetrates into every corner of the part, including complex geometries.
Smooth Surface Finish & Uniform Coat Thickness
Provides a consistent, uniform layer across the entire component with a smooth finish.
Very Good Adhesion Behavior
Ensures strong bonding between the coating and the substrate, ideal for long-term performance.
Useful for Any Type of Part Geometry
Perfect for components with intricate shapes, recesses, and edges.
SCADA
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Environmentally Friendly Proces
Water-based technology with low VOC emissions, complying with modern sustainability standards.
Testing & Quality Assurance
Ekviras in-house laboratory is equipped with advanced facilities like Salt Spray Chamber, DFT Tester, Adhesion Tester, MIBK Testing, and Titration Process. Every product undergoes stringent testing as per ASTM standards.
Know More| Test | Method | Performance Data |
|---|---|---|
| Gloss at 60° Head | ASTM D523 | 60-75 % |
| Pencil Hardness | ASTM D3363 | 2H Minimum |
| Crosshatch Adhesion | ASTM D3359 | 4B-5B, Passes 100% |
| Direct Impact | ASTM D2794 | 100 in-lb Minimum |
| Reverse Impact | ASTM D2794 | 60 in-lb Minimum |
| Humidity | ASTM D1735 | 1000 Hours Minimum |
| Water Soak | ASTM D870 | 1000 Hours Minimum |
| Gravelometer | GM9508P | 6 Minimum |
| Throw Power | GM9535P Ford Box | 12–15 inches (Min 21 cm) |
| Salt Spray Test | ASTM B117 - Neutral | Passes Min 1200 hrs. No blisters/corrosion |
| Scab Corrosion Resistance | GM9511P | Passes 20 cycles. Creep width Max. 2.0 |
| Chip Resistance | SAE J400 | 4B (50–74 chips, 1–3 mm diameter) |
| Cyclic Corrosion Test | FLTM BI 123-03 / ASTM D610 | Passes 20 cycles |
